Full Enclosed Agitated Reacting Nutsche Filtering, Washing, Drying (three in one ) Machine

Place of Origin China(Yixing, Jiangsu)
Brand Name Juneng Machinery
Certification CE、ISO9001
Model Number GXG 800
Minimum Order Quantity One set
Packaging Details Standard Wooden Case
Delivery Time 60 days
Payment Terms TT
Supply Ability 40 set / months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

rotary tray dryer

,

liquid filter drier

Leave a Message
Product Description

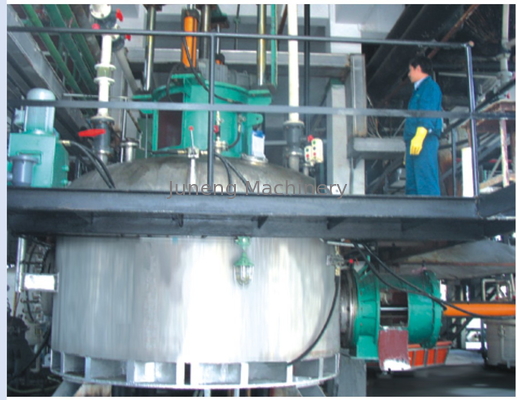

Full Enclosed Agitated Reacting Nutsche Filtering, Washing, Drying (three in one ) Machine

Product description:

GXG series multi-functions filtering, washing , drying (three in one ) machine is a solid-liquid equipment with the functions of filtration, washing, drying reaction and residue discharging automatically.



Application:

It is widely used in fine chemical, petroleum, foodstuff, printing, pharmaceutical industries, Glyphosate, Penicillin and so on.



Product competitive advantage:

1, Full enclosed filter, no leakage, no pollution

2, Solid-liquid separation can be realized under pressure or vacuum state. Filter cakes evenly distributed when filtering which has good effect.

3, Stirring system can stepless speed regulating and multi-function work. It can enlarge furthest for the cake space, thus filter cake can be fully cleaned; the time of drying is reduced greatly, with high efficiency.

4, Discharge valve can discharge automatically which can lower labor intensity.

5, Especially suitable for the material that large solid content, and recovering liquid phase and solid phase respectively.

6, Adopting horizontal placing filter material, one time completely filtering no  remains. Filter material has unique sealing structure which is easy to be changed.

7, Anticorrosion three in one system is made of special material which can be suitable for multiform anticorrosion medium.

8, Stirring, mixing , beating , reacting, washing and multiform process working can be practiced in the body and it can carry out full automatic control.



Product Specifications:

Model

Filtration area ㎡

Shell
diameter (mm)

Work
pressure (Mpa)

Nominal
volume (m3)

Filter cake
height (mm)

GXG-600

0.28

600

-0.1~0.3

0.2

150

GXG-800

0.5

800

-0.1~0.3

0.5

180

GXG-1200

1.1

1200

-0.1~0.3

1.3

250

GXG-1600

2.0

1600

-0.1~0.3

2.8

350

GXG-2000

3.1

2000

-0.1~0.3

4.8

400

GXG-2400

4.5

2400

-0.1~0.3

6.5

450

GXG-2600

5.3

2600

-0.1~0.3

8.7

450

GXG-2800

6.0

2800

-0.1~0.3

12

450

GXG-3000

7

3000

-0.1~0.3

13

500

GXG-3200

8

3200

-0.1~0.3

14.5

500
