| Brand Name: | Juneng |
| Model Number: | DBSY204,DHSY360, DHSY470,DHSY550 |
| MOQ: | One set |
| Price: | USD18000-55000/set |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T |

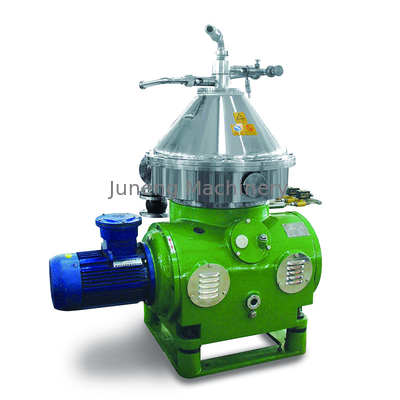

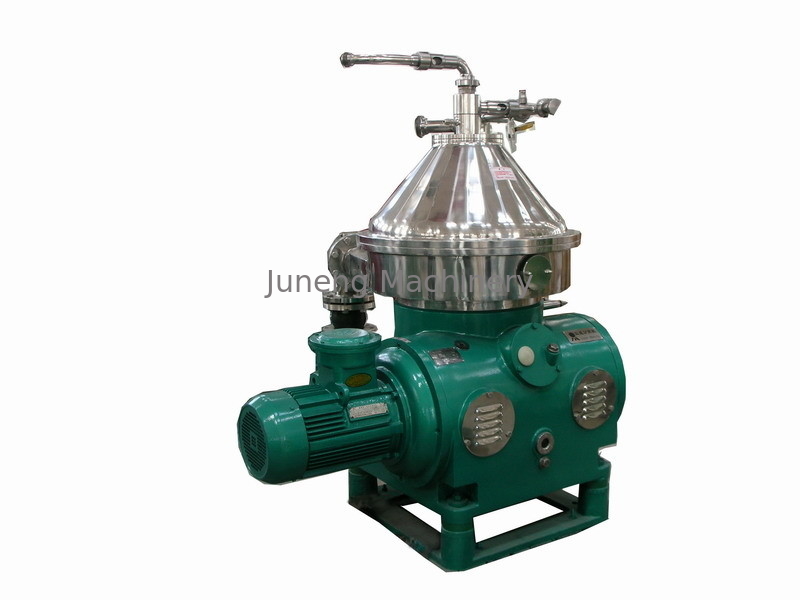

Stainless steel Renewable biological separator centrifuge used for methyl ester, glycerin, catalyst, de-soap
1.Product Description
Biodiesel is a clean and renewable energy. It is the reborn fuel and excellent substitute of petroleum diesel. Biodiesel is made by ester exchange process which raw material bases on plant oil crops, wild plants and engineering microalgae type aquatic plants fats as well as animal fats, food waste oil, etc. Biodiesel also is a typical “green energy”, so develop the bio-diesel has an important strategic significance in continuable economic development, promote alternative energy, reduce environment pressure and control urban air pollution.
By adoptin oil and fat as raw materials, biological diesel oil is achieved through etherification reaction with methanol by adding alkali catalyst. The glycerin produced in the reaction is a subsidiary product.
2.Process flow
3.Technical data
|
Model |
Treatment |
Inlet |
Outlet |
Motor |
Weight(Kg) |
Outline |
| DHSY204 | 700-2000 | 0.05 | 0.1-0.25 | 4 | 408 | 810*850*1350 |
| DHSY360 | 1200-2500 | 0.05 | 0.1-0.25 | 7.5 | 1280 | 1500*1150*1500 |
|
DHSY470 |
4000-7000 |
0.05 |
0.1-0.3 |
15 |
1880 |
1800*1200*1800 |
|
DHSY550 |
6000-15000 |
0.05 |
0.1-0.3 |
22 |
2200 |
1850*1550*2050 |
|
DHSY700 |
8000-25000 | 0.05 | 0.1-0.3 | 37 | 3300 | 2050*1700*2300 |
4.Applications
1 )Separation of methyl ester, glycerin, catalyst, de-soap, methanol
2 )Methyl washing
3 )Extraction of fatty acids
4 )Glycerol desalination
Juneng Group is a large scale manufacturer of industrial products in China. This group principally engaged with the in-house research & development as well as manufacturing of various industrial filters, separators , centrifuges and pumps.
The Company is proud to be the leader in such industry with approximately 90% domestic market share in Oils & Fats industry, Chemical industry, Pharmaceutical industry, Beverage industry, Petrol-chemical industry, and now is one of the well-known producers and suppliers in World .
The Company now has its three production bases with a total capacity of 280,000 square meters in Nanjing city and Yixing City , permanent workforces not less than 1500 people and the production line is well equipped with more than 2000 inits of advanced production equipment and test Instrumentation .
