High Speed Industrial Oil Separators Stable Operation High Oil Rate Disc Stack

Place of Origin Jiangsu,China
Brand Name Juneng
Certification CE\ISO
Model Number DHKY
Minimum Order Quantity One set
Packaging Details Seaworthy packing
Delivery Time 50 days
Payment Terms TT, L/C
Supply Ability 20 set / months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Disc Stack Separator Mineral Oil Separator Operation PLC Control Automatic
Material Stainless Steel Product Type Fish Oil Separator
After-sales Service Provided Engineers Available To Service Machinery Overseas,Online Support Voltage Customized
High Light

Industrial Oil Separator Stable Operation

,

High Oil Rate Disc Stack Separator

,

High Speed Industrial Oil Separator

Leave a Message
Product Description

1.Product Description:

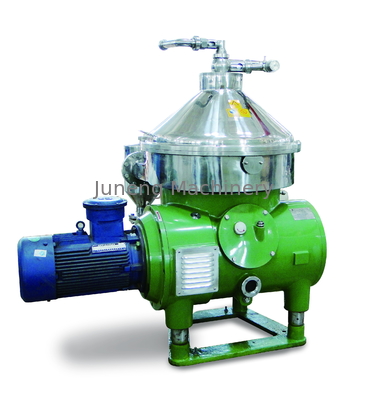

DHKY separator is the equipment which special for oil refining that is of high speed, stable, hermetic, efficient and fully automated. All parts & components contacting materials are made of stainless steel, can effectively minimize chemical reaction between the materials to be separated and part surface contacted. The separated light and heavy phase materials will be output by two centripetal pumps of different sizes. This machine is fed upper, so it has very low inlet pressure for materials.The hydraulic coupling and a pair of spiral speed increasing gears are used in the power transmission. The liquid is used to transmit power, which can not only increase the speed stably, but also protect the overload.
High Speed Industrial Oil Separators Stable Operation High Oil Rate Disc Stack 0
According to customary, the base oil which extracted from the rock oil by physical distillation method called mineral oil. Ancient animal remains assimilate the distillate from the heaven and earth then present to nature for human use. Juneng separator with itself advanced centrifuge technology makes this material much better exploited by humans.
 Mineral oil separator is mainly used for used oil fuel which from ship or land station purification or lubrication regeneration. It can reduce the diesel engine abrasion and prolong the machine’s life, and ensure the diesel engines can operate normally. The maximum viscosity of treated oil can up to 380cst/50ºC(3500SRW1/100ºF
The mineral oil separator is mainly used for used oil fuel which from ship or land station purification or lubrication regeneration.

2.Technical data

Model

Treatment
capacity (m³/H)

Inlet
pressure (Mpa)

Outlet
pressure (Mpa)

Motor
power (Kw)

Weight(Kg)

Outline
dimension (mm)

DHKY360

1-5

0.05

0.1-0.25

7.5

1280

1500*1150*1500

DHKY4703-100.050.1-0.251518801800*1200*1800
DHKY5505-200.050.1-0.252222001850*1550*2050
DHKY6113-100.050.1-0.318.518801870*1236*1726
DHKY6145-200.050.1-0.33022001970*1540*2010



3.Advantages:
1)High speed,
2)stable operation,
3)fully closed of inlet and outlet system,
4)low noise,
5)good separation,
6)high oil rate,
7)fully automatic control ,
8)easy to operate.

4.Product Details

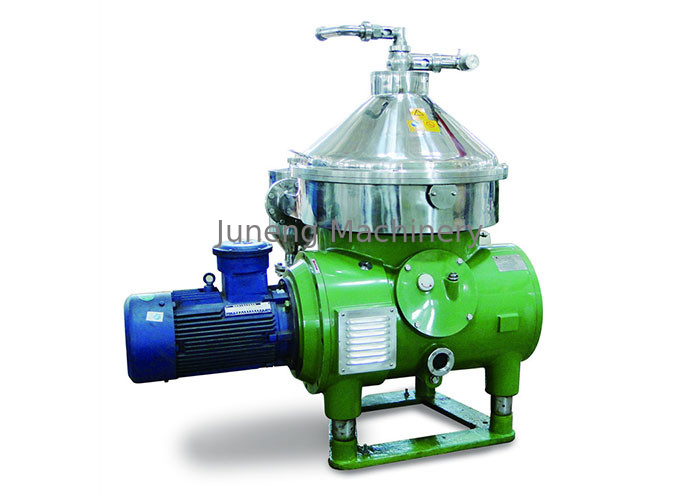

High Speed Industrial Oil Separators Stable Operation High Oil Rate Disc Stack 1

5.Introduction of Company:

Juneng Group has set-up a 1st class in-house laboratory for chemical composition analysis, metallographic analysis, spectrum analysis, performance analysis, radiographic inspection, magnetism inspection, ultra-sonic inspection and etc. This is to imply with the latest advance instrumentations and rigorous working attitude to ensure every part of product is stable and reliable.
High Speed Industrial Oil Separators Stable Operation High Oil Rate Disc Stack 2
High Speed Industrial Oil Separators Stable Operation High Oil Rate Disc Stack 3
High Speed Industrial Oil Separators Stable Operation High Oil Rate Disc Stack 4


6.History:

Juneng Group was established at 1987. It has 23 year history. Now its three production bases with a total capacity of 280000 square meters in Nanjing City and Yixing City of Jiangsu Province.

Juneng’s success is contributed by the commitment of every member of the Company. In addition, the specialty and potential of each member is being respected and disinterred.

7.Certifications
High Speed Industrial Oil Separators Stable Operation High Oil Rate Disc Stack 5
