| Brand Name: | Juneng |
| Model Number: | DHZ470 |
| MOQ: | 1 set |
| Price: | USD13000-50000/set |
| Delivery Time: | 50 work days |
| Payment Terms: | L/C, T/T |

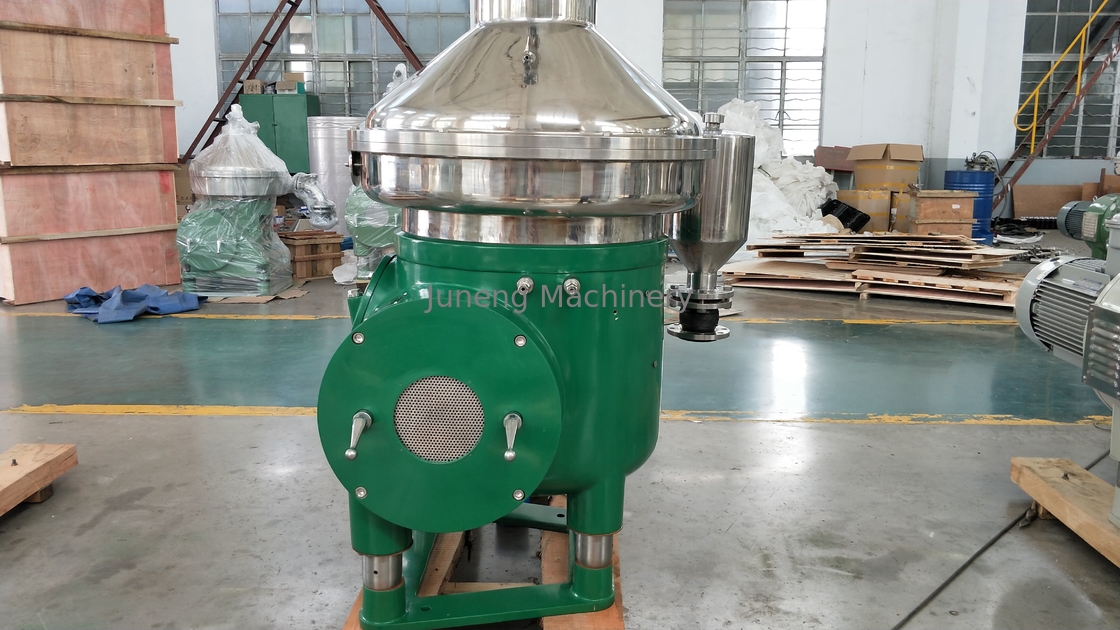

Juneng high quality food grade stainless steel edible oil separator machine price
Product description:
Enough oil should be ensured in human’s dietary, and vegetable oil and animal oil meet with their different nutrients to meet the human body needs. So the oil quality affects the human health directly. Juneng Separator can suitable for a variety of oils and fats and provide personalized solutions in order to achieve optimal oil and maximized production capacity.
Technical data:
| Model | Treatment capacity(L/H) | Inlet pressure(Mpa) | Outlet pressure(Mpa) | Motor power(KW) | Weight(Kg) | Outline dimension(mm) |
| DHZ360 | 1200-2500 | 0.05 | 0.1-0.25 | 7.5 | 1280 | 1500*1150*1500 |
| DHZ380 | 1500-5000 | 0.05 | 0.1-0.25 | 11 | 1500 | 1555*1130*1629 |
| DHZ470 | 2500-7000 | 0.05 | 0.1-0.25 | 15 | 1880 | 1800*1200*1800 |
| DHZ500 | 5000-10000 | 0.05 | 0.1-0.25 | 22 | 1950 | 1800*1250*1800 |
| DHZ550 | 6000-15000 | 0.05 | 0.1-0.25 | 22 | 2200 | 1850*1550*1800 |
| DHZ700 | 15000-30000 | 0.1 | 0.2 | 30 | 3300 | 2100*1650*2300 |
| DRZ360 | 1200-2500 | 0.05 | 0.1-0.25 | 5.5 | 750 | 1250*1050*1500 |
| DRZ400A | 2000-6000 | 0.05 | 0.1-0.3 | 7.5 | 1150 | 1300*900*1450 |
| DRZ400E | 4000-7500 | 0.05 | 0.1-0.3 | 7.5 | 1300 | 1300*900*1500 |
| DRZ550 | 6000-18000 | 0.05 | 0.1-0.3 | 22 | 2200 | 1620*1300*2200 |
Application:
DHZ series disc centrifuge for vegetable oil refining are widely used in continuous degumming, neutralizing, dewaxing, and washing of vegetable oils .
Vegetable oil: Colza oil, cottonseed oil, Corn oil, palm oil, soybean oil, Peanut oil, Rice oil, Sesame oil, Safflower oil and son on.
Animal oil: fish oil and other various animal fat clarification.
Product competitive advantage:
1, High rotating speed
2, Operating stability
3, Completely sealed up of the inlet and outlet system
4, Lower noise
5, The professional designed centripetal pump system has many advantages such as stability outlet pressure, large regulating sphere, easily operating and so on.
6, This special design separator has the full automatic control box which used for safety protection and equips and also been equipped with advanced automatic vibration tester which can view vibrating value at any time. We can make separating and discharging to the best affection from regulating separation parameter directly at the screen.
Product Specifications
DHZ360 30-50 Ton Per Day
DHZ470 100-150 Ton Per Day
DHZ550 200-300 Ton per Day
Quality guarantee
1.Separator manufactured in compliance with quality guaranteen system of ISO9001-2000.
2.The Seller shall guarantee that the separator manufactured in compliance with quality guarantee standard of JB/T8103-2005.
3.The guarantee period shall be 1 year counted from the date on which the commodity arrives at the port of destination.
