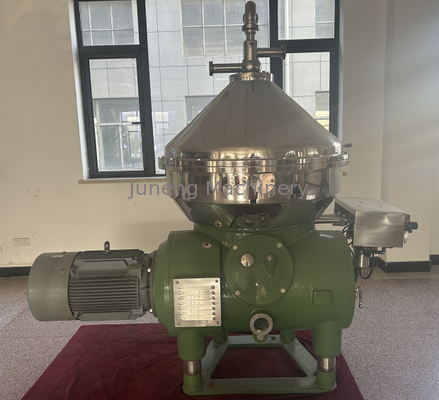

Stainless Steel Disc Separator Centrifuge For Pharmaceutical Industry With Solenoid Valve Cover
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | For Pharmaceutical Industry Stainless Steel Disc Separator Centrifuge With Solenoid Valve Cover | Treatment Capacity(m³/h) | 3-8 |
---|---|---|---|
Inlet Pressure(Mpa) | 0.2 | Outlet Pressure(Mpa) | 0.2 |
Motor Power(Kw) | 18.5 | Weight( Kg)) | ~2000 |
Outline Dimension(mm) | 1875*1250*1800 | ||
High Light | Disc Separator Centrifuge For Pharmaceutical Industry,Disc Separator Centrifuge With Solenoid Valve,Disc Separator Centrifuge 18.5Kw |
For pharmaceutical industry stainless steel disc separator centrifuge with solenoid valve cover
Product Description
The separator adopts ring valve type automatic slag discharge, which is automatically controlled by computer program and IPC. It can carry out regular and quantitative slag discharge according to the setting requirements without stopping the feeding. It has high degree of automation, strong adaptability to process adjustment, convenient adjustment and satisfactory separation effect.
The power transmission adopts the belt drive, the motor is slowly started with the converter, and the shaft reaches the rated speed, making the start-up process and operation smooth.
The separator is mainly used for the separation of two kinds of non-phase solution bodies and a small number of impurities.
Technical data
Model |
Treatment |
Inlet |
Outlet |
Motor |
Weight(Kg) |
Outline |
DHC211 | 3-8 | 0.2 | ≤0.2 | 15 | 1880 | 1800*11200*1910 |
DHC214 | 5-15 | 0.2 | ≤0.4 | 22 | 2200 | 1980*1550*2020 |
DHC216 |
15-25 |
0.2 |
≤0.4 |
37 |
3300 |
2100*1900*2400 |
DHC611 |
3-8 |
0.2 |
≤0.2 |
18.5 |
2000 |
1875*1250*1800 |
DHC614 |
85-15 | 0.2 | ≤0.4 | 30 | 2100 | 2000*1600*1900 |
DHC620 | 20-35 | 0.2 | ≤0.4 | 55 | 3600 | 2360*1690*2500 |
Operation principle
The separated material will be input into the heart of the separator, i.e. the drum. By the strong centrifugal force field, the material (hybrid liquid) passes the separation partition consists of disk string, by taking the neutral holes in disk as the separating surface, the liquid in higher specific gravity (heavy phase) will move outward the neutral holes along disk wall, and the heavy residue will accumulate at the residue-settling area, and the soap residue will flow toward the big centripetal pump. The liquid in lower specific gravity (light phase) will move inward and upward along disk wall, then assemble at the small centripetal pump. The heavy and light phase will be output separately by small and big centripetal pump. Heavy slag is regularly discharged to achieve continuous production
Successful Applications
Separation of the extract(such as penicillin, vitamin,Colibacillus, Antibiotics, Hormones,etc.),Vaccine, Microbial
Concentration, Concentration and Clarification of Fermentation Broth Blood Separation, extraction of Chinese medicine, etc
Main Features
Name: Drum
Brand: Ju neng
Original: China
Domestic famous engines, strong driving force,
Maintain and Repair.
During warranty period, our engineer could service door-to-door if necessary, or customer could send the fault equipment to our factory.
