Stainless Steel Disc Oil Separator Belt Drive Automatic Slag Discharge Centrifuge For Pharmacy
stainless steel disc separator
,Belt Drive Automatic Slag Discharge Centrifuge
,Disc Oil Separator For Pharmacy
Basic Properties
Trading Properties

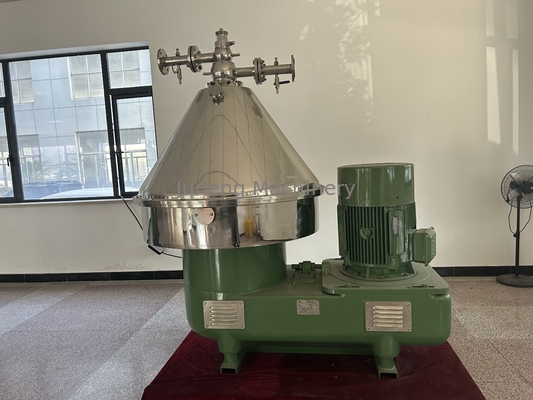

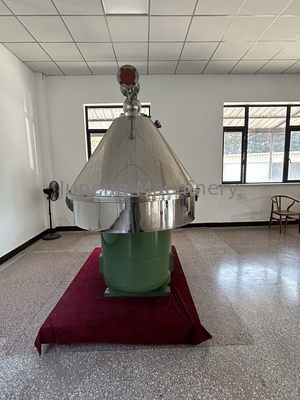

Belt drive automatic slag discharge stainless steel disc separator centrifuge for pharmacy
Product Description
The separator adopts ring valve type automatic slag discharge, which is automatically controlled by computer program and IPC. It can carry out regular and quantitative slag discharge according to the setting requirements without stopping the feeding. It has high degree of automation, strong adaptability to process adjustment, convenient adjustment and satisfactory separation effect.
The power transmission adopts the belt drive, the motor is slowly started with the converter, and the shaft reaches the rated speed, making the start-up process and operation smooth.
Technical data
|
Model |
Treatment |
Inlet |
Outlet |
Motor |
Weight(Kg) |
Outline |
| DHC211 | 3-8 | 0.2 | ≤0.2 | 15 | 1880 | 1800*11200*1910 |
| DHC214 | 5-15 | 0.2 | ≤0.4 | 22 | 2200 | 1980*1550*2020 |
|
DHC216 |
15-25 |
0.2 |
≤0.4 |
37 |
3300 |
2100*1900*2400 |
|
DHC611 |
3-8 |
0.2 |
≤0.2 |
18.5 |
2000 |
1875*1250*1800 |
|
DHC614 |
85-15 | 0.2 | ≤0.4 | 30 | 2100 | 2000*1600*1900 |
| DHC616 | 45 | 0.2 | ≤0.4 | 45 | 2600 | 2188*1748*2488 |
| DHC620 | 20-35 | 0.2 | ≤0.4 | 55 | 3600 | 2360*1690*2500 |
Successful Applications
Separation of the extract(such as penicillin, vitamin,Colibacillus, Antibiotics, Hormones,etc.),Vaccine, Microbial
Concentration, Concentration and Clarification of Fermentation Broth Blood Separation, extraction of Chinese medicine, etc
The separator mainly consists of inlet/outlet, drum, cover, vertical shaft, cross shaft, stand, motor and automatic control box, etc.
Introduction of Company:
Juneng Group has set-up a 1st class in-house laboratory for chemical composition analysis, metallographic analysis, spectrum analysis, performance analysis, radiographic inspection, magnetism inspection, ultra-sonic inspection and etc. This is to imply with the latest advance instrumentations and rigorous working attitude to ensure every part of product is stable and reliable.
History:
Juneng Group was established at 1987. It has 23 year history. Now its three production bases with a total capacity of 280000 square meters in Nanjing City and Yixing City of Jiangsu Province.
Juneng’s success is contributed by the commitment of every member of the Company. In addition, the specialty and potential of each member is being respected and disinterred.
Certifications
