| Brand Name: | Juneng |
| Model Number: | DHC616 |
| MOQ: | One set |
| Price: | USD18000-55000/set |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T |

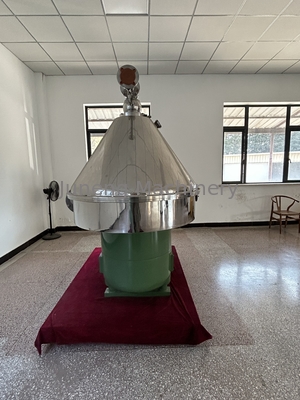

Belt drive automatic slag discharge stainless steel disc separator centrifuge for pharmacy
Product Description
The separator adopts ring valve type automatic slag discharge, which is automatically controlled by computer program and IPC. It can carry out regular and quantitative slag discharge according to the setting requirements without stopping the feeding. It has high degree of automation, strong adaptability to process adjustment, convenient adjustment and satisfactory separation effect.
The power transmission adopts the belt drive, the motor is slowly started with the converter, and the shaft reaches the rated speed, making the start-up process and operation smooth.
Technical data
|
Model |
Treatment |
Inlet |
Outlet |
Motor |
Weight(Kg) |
Outline |
| DHC211 | 3-8 | 0.2 | ≤0.2 | 15 | 1880 | 1800*11200*1910 |
| DHC214 | 5-15 | 0.2 | ≤0.4 | 22 | 2200 | 1980*1550*2020 |
|
DHC216 |
15-25 |
0.2 |
≤0.4 |
37 |
3300 |
2100*1900*2400 |
|
DHC611 |
3-8 |
0.2 |
≤0.2 |
18.5 |
2000 |
1875*1250*1800 |
|
DHC614 |
85-15 | 0.2 | ≤0.4 | 30 | 2100 | 2000*1600*1900 |
| DHC616 | 45 | 0.2 | ≤0.4 | 45 | 2600 | 2188*1748*2488 |
| DHC620 | 20-35 | 0.2 | ≤0.4 | 55 | 3600 | 2360*1690*2500 |
Successful Applications
Separation of the extract(such as penicillin, vitamin,Colibacillus, Antibiotics, Hormones,etc.),Vaccine, Microbial
Concentration, Concentration and Clarification of Fermentation Broth Blood Separation, extraction of Chinese medicine, etc
The separator mainly consists of inlet/outlet, drum, cover, vertical shaft, cross shaft, stand, motor and automatic control box, etc.
