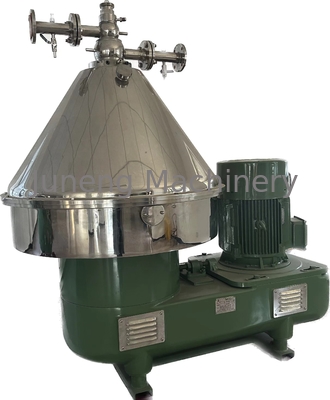

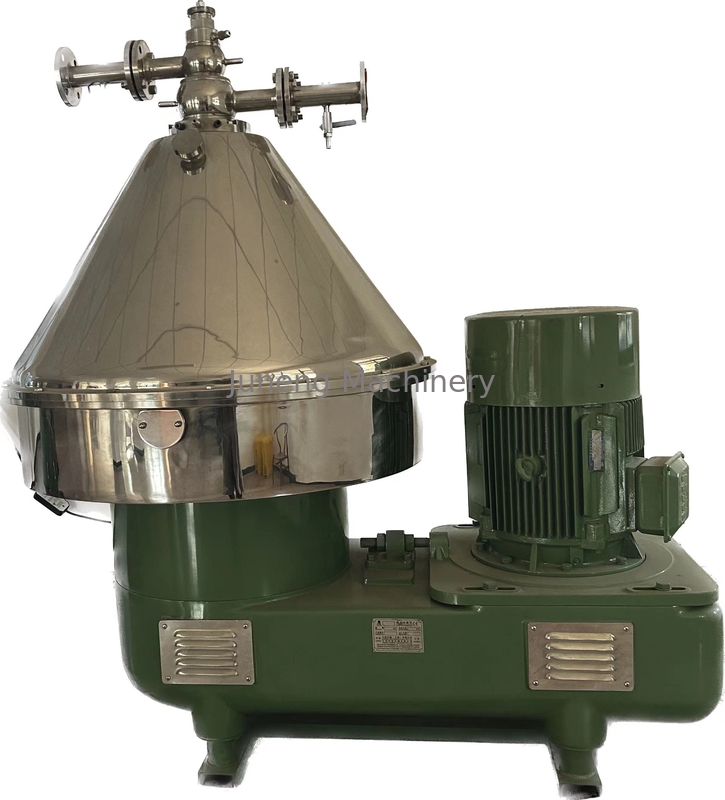

Stainless Steel Belt Drive Disc Separator Centrifuge 4500 Rpm For Extract

Place of Origin Jiangsu,China
Brand Name Juneng
Certification ISO/CE
Model Number DHC616
Minimum Order Quantity One set
Price USD18000-55000/set
Packaging Details Seaworthy packing
Delivery Time 60 days
Payment Terms L/C, T/T
Supply Ability 30 sets / months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Stainless Steel Belt Drive Disc Separator Centrifuge For The Extract Speed Of Drum 4500 Rpm
Processing Capacity 15000~25000L/h Motor Model Power 45Kw
Outline Dimension (L×W×H) 2188x1748x2488 Mm Weight ~2600 Kg
High Light

drive disc separator centrifuge

,

Stainless Steel Belt disc separator centrifuge

,

4500 rpm disc Oil separator centrifuge

Leave a Message
Product Description



Stainless steel belt drive disc separator centrifuge for the extract



Product Description



Biopharmaceutical as a high-technology has opened up a broad foreground for the development of medical industry and pharmaceutical industry and greatly improved people's lives. Therefore, biotechnology has been identified by the world as the key technologies and new industries in the world's scientific and technological development in 21st century.
The separator adopts ring valve type automatic slag discharge, which is automatically controlled by computer program and IPC. It can carry out regular and quantitative slag discharge according to the setting requirements without stopping the feeding. It has high degree of automation, strong adaptability to process adjustment, convenient adjustment and satisfactory separation effect.



Stainless Steel Belt Drive Disc Separator Centrifuge 4500 Rpm For Extract 0



Technical data

Model

Treatment
capacity (m³/H)

Inlet
pressure (Mpa)

Outlet
pressure (Mpa)

Motor
 power (Kw)

Weight(Kg)

Outline
dimension (mm)

DHC211 3-8 0.2 ≤0.2 15 1880 1800*11200*1910
DHC214 5-15 0.2 ≤0.4 22 2200 1980*1550*2020

DHC216

15-25

0.2

≤0.4

37

3300

2100*1900*2400

DHC611

3-8

0.2

≤0.2

18.5

2000

1875*1250*1800

DHC614

85-15 0.2 ≤0.4 30 2100 2000*1600*1900
DHC616 45 0.2 ≤0.4 45 2600 2188*1748*2488
DHC620 20-35 0.2 ≤0.4 55 3600 2360*1690*2500



Working principle

The separated material will be input into the heart of the separator, i.e. the drum. By the strong centrifugal force field, the material (hybrid liquid) passes the separation partition consists of disk string, by taking the neutral holes in disk as the separating surface, the liquid in higher specific gravity (heavy phase) will move outward the neutral holes along disk wall, and the heavy residue will accumulate at the residue-settling area, and the soap residue will flow toward the big centripetal pump. The liquid in lower specific gravity (light phase) will move inward and upward along disk wall, then assemble at the small centripetal pump. The heavy and light phase will be output separately by small and big centripetal pump. Heavy slag is regularly discharged to achieve continuous production.



Successful Applications

Separation of the extract(such as penicillin, vitamin,Colibacillus, Antibiotics, Hormones,etc.),Vaccine, Microbial

Concentration, Concentration and Clarification of Fermentation Broth Blood Separation, extraction of Chinese medicine, etc


Detailed Images
Stainless Steel Belt Drive Disc Separator Centrifuge 4500 Rpm For Extract 1

Parts in the rotating bowl drum

ll parts & components contacting materials are made of stainless steel, can effectively minimize the corrosion from the materials to be separated, and meet hygienic requirements for food.

The separator bowl has gone through precise dynamic balance, it can run steadily, with low vibration and noise at operation.

Stainless Steel Belt Drive Disc Separator Centrifuge 4500 Rpm For Extract 2

Vertical shaft and horizontal shaft
All the parts are made of stainless steel
High quality machining
Refining Machine



Stainless Steel Belt Drive Disc Separator Centrifuge 4500 Rpm For Extract 3
Material



Super stainless steel
Function
Running in High speed
Assembly
Precision assembly
Speed
5000-12000 RPM
Stainless Steel Belt Drive Disc Separator Centrifuge 4500 Rpm For Extract 4

PLC control box

The separator is equipped with an automatic control cabinet. It consist of an industrial computer and auto overload protector, is highly automated, highly adaptive to change in process, easy to adjust, can greatly reduce the operation labor of workers.

Stainless Steel Belt Drive Disc Separator Centrifuge 4500 Rpm For Extract 5

Product Equipment

Our company has set-up a first class laboratory for Chemical composition analysis, metallographic analysis, spectrum analysis, performance analysis, radiographinc inspection, magnetism inspecion, ultra-sonic inspection and etc. This is to imply with the latest adva nce instrumentationss and rigorous working attitude to ensure every part of product is stable and reliable.


Test & Inspection

QA & QC / Test

1. Material Test Report 6. Spare Parts Inspection

2. Magnetic Particle Examination 7. Nondestructive Examination

3. Metallographic Analysis Sampling 8. Dynamic Balancing Test

4. Liquid Penetrant Examination 9. Radiographic Examination

5. Over Speed Test 10. Performance Test

Stainless Steel Belt Drive Disc Separator Centrifuge 4500 Rpm For Extract 6
Stainless Steel Belt Drive Disc Separator Centrifuge 4500 Rpm For Extract 7
Stainless Steel Belt Drive Disc Separator Centrifuge 4500 Rpm For Extract 8
Stainless Steel Belt Drive Disc Separator Centrifuge 4500 Rpm For Extract 9
Stainless Steel Belt Drive Disc Separator Centrifuge 4500 Rpm For Extract 10

Company Instruction

Juneng Group is a large scale manufacturer of industrial products in China. This group principally engaged with the in-house research & development as well as manufacturing of various industrial filters, separators , centrifuges and pumps.



The company has a comprehensive scientific research, testing and testing center. It has more than 300 sets of testing equipment. All kinds of tests, analysis and evaluation methods are complete, equipment and instruments are advanced, and the inspection personnel have a higher level of business. Quality control is carried out in several links such as raw materials, finished products and products before leaving factory, so as to ensure that the products are qualified.
