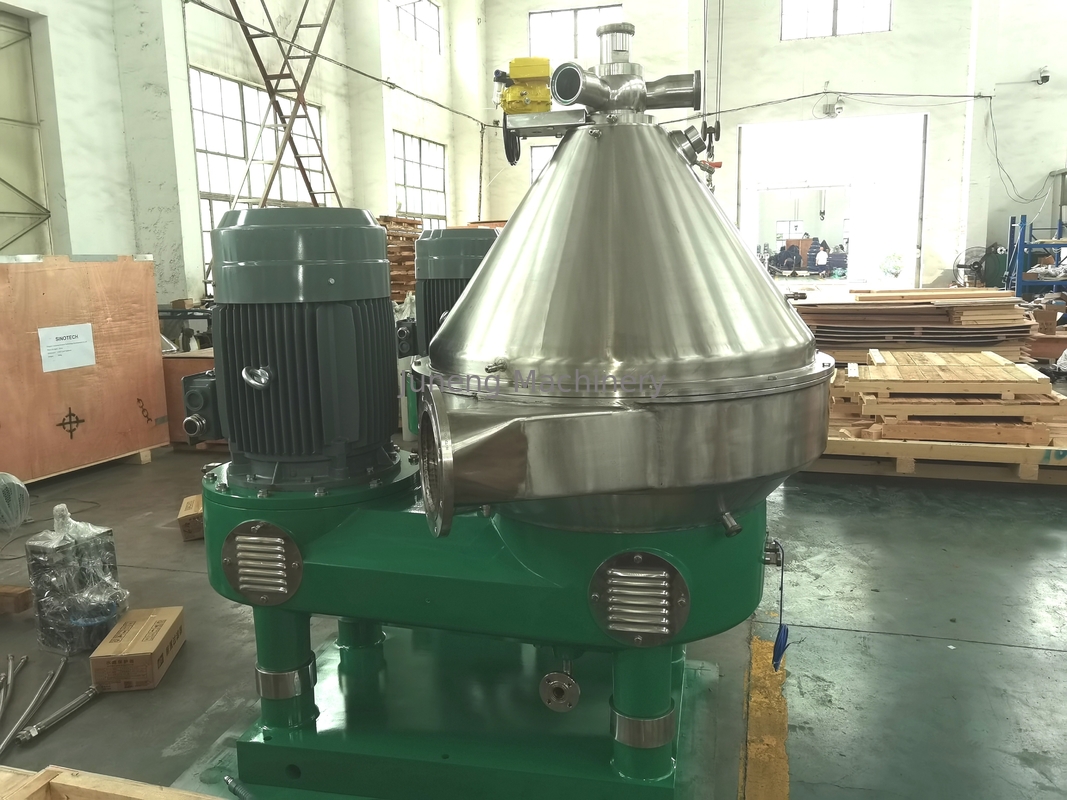

Stainless Steel Disc Separator Centrifuge Three Phase For Fatty Oil Degumming
| Place of Origin | Jiangsu,China |
|---|---|
| Brand Name | Juneng |
| Certification | ISO/CE |
| Model Number | DHZ700 |
| Minimum Order Quantity | 1 set |
| Price | USD23000-150000/set |
| Packaging Details | seaworthy packing |
| Delivery Time | 50 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20 sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Three Phase Stainless Steel Disc Separator Centrifuge For Fatty Oil Degumming, Neutralization, And Washing | Treatment Capacity(L/H) | 15000-30000 |
|---|---|---|---|
| Inlet Pressure(Mpa) | 0.1 | Outlet Pressure(Mpa) | 0.2 |
| Motor Power(kw) | 30 | Weight(kg) | 3300 |
| Outline Dimension(mm) | 2100*1650*2300 | ||
| High Light | Stainless Steel Disc Separator Centrifuge,Three Phase Disc Separator Centrifuge,Disc Separator For Fatty oil degumming |
||
Product Description
Three Phase Stainless Steel Disc Separator Centrifuge For Fatty oil degumming, neutralization, and washing
Product Description
DHZ separator can discharge automatically with ring valve, and it is controlled automatically by computer system and Industrial Personal Computer. It can discharge regularly and quantificationally without stopping feeding, and has many advantages as high automation, can be suitable for many process line, easy to adjust or regulate, and obtain satisfactory separation effect.
The power transmission motor is slowly started through frequency converter, driving the belt through a pair of speed increasing pulleys to drive the vertical shaft to the rated speed, which not only runs smoothly but also provides overload protection during operation.
Technical data
|
1500*1150*1500 |
||||||
|
2500-7000 |
1800*1200*1800 |
|||||
|
5000-10000 |
1850*1550*2050 |
|||||
|
6000-15000 |
1850*1550*2050 |
|||||
|
15000-30000 |
2100*1650*3000 |
Working principle
The separated material is fed into the heart part of the machine, which is the inner part of the drum. Under strong centrifugal force, the material passes through a set of separation intervals of disc bundles, with the neutral hole of the disc as the interface. The liquid with a higher specific gravity moves along the disc wall towards the outside of the neutral hole, where heavy slag accumulates in the sediment area, and the heavy phase flows towards the upward centripetal pump; The liquid with a smaller specific gravity moves along the disc wall towards the neutral hole and converges to the lower centripetal pump. The light and heavy phases are output by the lower centripetal pump and the upper centripetal pump respectively; Heavy slag is regularly discharged; Implement continuous production.
Main application
1. Soybean, Rapeseed, sunflower seed, cotton seed
2. Palm oil, Coconut oil, linseed oil
3. Peanut , Corn Germ , Rice bran oil
4. Special oil, such as sesame oil, orange peel oil, safflower oil and so on
Core capacity
1. Degumming
2. Deacidification
3. Dewaxing
4. Fractionation
5. Water washing
6. Squeezed oil clarification
7. Lecithin deoiling
8. Frying oil refining
Detailed images
Machine Parts
Name: Disc
Brand: Juneng
Original: China
Domestic famous engines
Main Parts
Name: Shaft
Brand: Juneng
Original: China
The vertical shaft is to transmit power, is equipped with speed step-up gear (small spiral gear) and hi-speed rotating part.
The cross shaft is to transmit motor power to the vertical shaft and main parts of the drum.
Machine Parts
Name: Drum
Brand: Juneng
Original: China
The drum is a component to separate material and rotates at high speed, is the heart of the separator.
Main Features
Name: Equipment Base
Brand: Juneng
Original: China
Underframe is the main part for supporting the whole separator and connecting base, all four supporting feet of the baseframe are equipped with damping rubber pads, which can isolate vibration between the separator and building very well.
