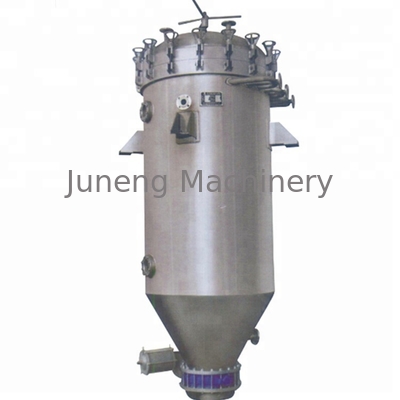

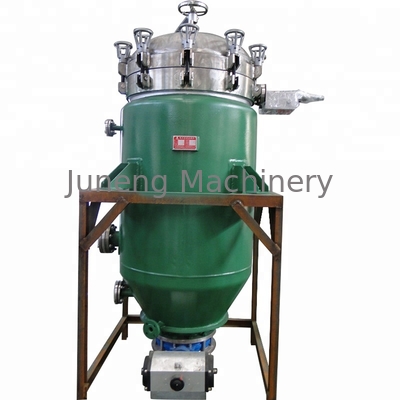

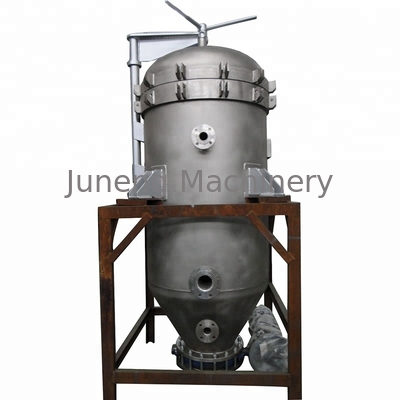

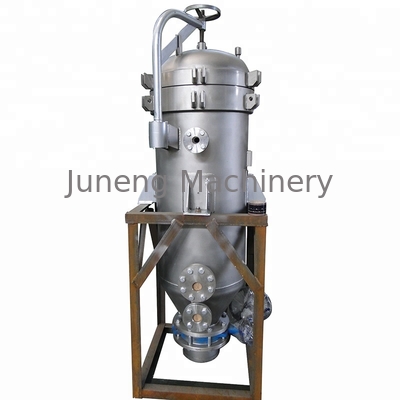

NYB-12 Vertical Leaf Oil Filter 12m2 Filtration Area 2-4T/H Capacity
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | juneng |
| Minimum Order Quantity | 1 set |
| Price | $4,100-4,300 / set |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity | 2-4T/H | Filtration Area | 12m2 |
|---|---|---|---|
| Material | Carbon Steel, Stainless Steel | Design Temperature | 100-150 ℃ |
| Design Pressure | 0.6Mpa | Inlet Size | DN50 |
| Overflow Port Size | DN40 | Filter Cake Volume | 240L |
| Work Pressure | 0.1-0.4Mpa | Max Pressure | 0.5Mpa |
| Work Temperature | ≤150℃ | Machine Volume | 1000L |
| Filter Leaves | 11 | Leaf Material | 316L |
| Butterfly Valve Size | DN400 | ||
| Highlight | Vertical Leaf Oil Filter 12m2,Vertical Pressure Leaf Filter 2-4T/H,Oil Filter with 12m2 Filtration Area |
||
Product Description
NYB-12 China Supplier Vertical Leaf Sunflower Oil Filter for Bleaching Oil Filter
Product Specifications
| Condition | New |
| Warranty | 1 Year |
| Function | Oil Filter |
| Structure | Leaf Filter |
| Capacity | 2-4T/H |
| Filtration area | 12m² |
| Material | Carbon steel, Stainless steel |
| Color | Green or blue |
| Design Temperature | 100-150 ℃ |
| Design Pressure | 0.6Mpa |
| Inlet size | DN50 |
| Overflow port size | DN40 |
| After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Applicable Industries | Food & Beverage Factory |
| Core Components | Pressure vessel |
Related Products
Product Application
NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

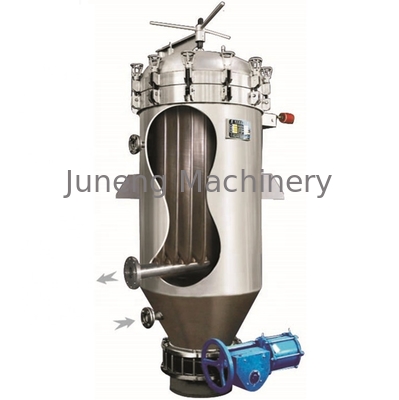

The filter is composed of shell, filtration plate, cover, and automatic dump device. Among them, the filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, so it can be dismantled for cleaning very conveniently.
Technical Specifications
| Model | Filtration area (m²) | Filter cake volume (L) | Treatment Capacity (T/H) | Work Pressure (Mpa) | Work temperature (℃) | Machine volume (L) |
|---|---|---|---|---|---|---|
| NYB-2 | 2 | 30 | 0.4-0.6 | 0.1-0.4 | ≤150 | 120 |
| NYB-4 | 4 | 60 | 0.5-1.2 | 0.1-0.4 | ≤150 | 250 |
| NYB-12 | 12 | 240 | 2-4 | 0.1-0.4 | ≤150 | 1000 |
Main Features
- No cloth or filter paper required, significantly reducing filtration costs
- Fully closed operation is environmentally friendly with no material loss
- Vibration residue discharge reduces labor intensity and enables continuous operation
- Pneumatic valve residue discharge minimizes worker labor intensity
- Capable of activated carbon (carclazyte) filtering or bleaching filtering, completely replacing plate and frame filters
Filter Leaf for NYB-12
- 11 filter leaves provide 12 sqm filtration area
- Leaves surrounded by heavy box channel 1.8 mm material 316L
- Topside of leaf with reinforcement and one vibrator fork per leaf (SS 316 material)
- Leaf bottom with outlet nozzle featuring "O"ring seal (SS 316 nozzle with Viton rubber "O"ring)
Butterfly Valve
- DN 400 butterfly valve WAFER TYPE for dry cake discharge
- High quality butterfly valve with NH-S seat material (up to 150°C)
- Includes pneumatic actuator (double acting type) with 5.5 Bar air supply
Certifications
Our Services
Pre-Sales Service
- Inquiry and consulting support
- Sample testing support
- Factory visit opportunities
After-Sales Service
- Installation and operation training
- Overseas engineer support available
- Prompt response within 2 hours for reported issues
- On-site problem resolution until customer satisfaction
Packaging & Delivery
| Size | 123 (L) * 456 (W) * 789 (D) |
| Weight | 1.2 T |
| Packaging Details | The normal package is wooden box. If export to european countries, the wooden box will be fumigated. If container is too tight, we will use PE film for packing or pack according to customer's special request. |
Our Company
Juneng Machinery (China) Co., Ltd., established in 2006, is a professional manufacturer engaged in the research, development, production, sale and service of Filters, Separators, Decanter centrifuges and pumps. We have four factories located in Nanjing and Yixing City with convenient transportation access.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements. We have obtained CE certificates, ASME U certificate and ISO 9001 certificate. Our products sell well throughout China and are exported to USA, Germany, Korea, Japan, and other countries.
We welcome OEM and ODM orders. Our customer service center is available to discuss your sourcing requirements.
Quality Assurance
- Factory visit/audit available prior to purchase
- Material inspection during manufacturing and prior to shipment
- Strict compliance to technical requirements
