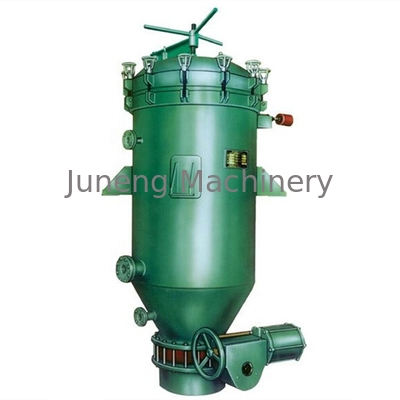

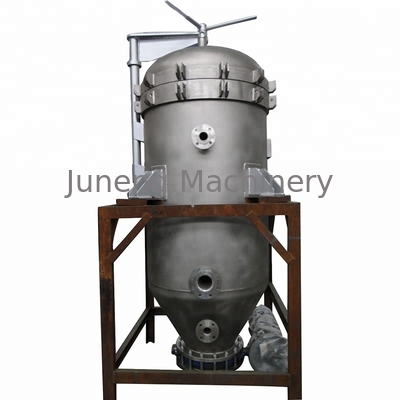

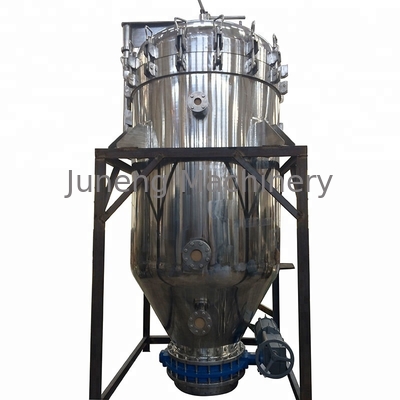

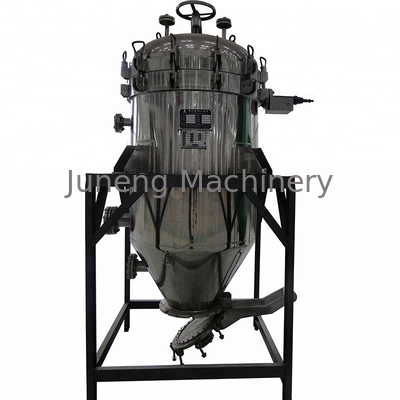

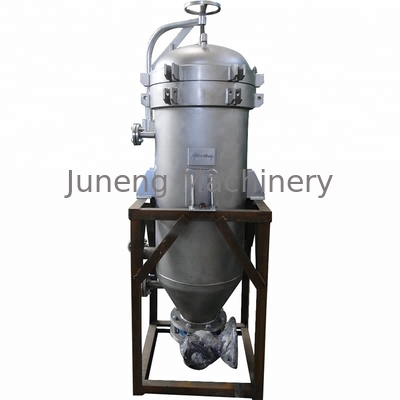

Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H
New Oil Bleaching Pressure Leaf Filter Press Machine Product Specifications Attribute Value Condition New Automatic Grade Semi-automatic Voltage Customized Power 1500W Weight 1000 kg Dimensions (L×W×H) 1610×1250×2500 mm Warranty 1 Year Function Oil Filter Structure Leaf Filter Capacity 2-4T/H ...
Product Details
Highlight:
semi-automatic oil bleaching filter
,pressure leaf filter 12m2
,vertical pressure filter 2-4T/H
Automatic Grade:
Semi-automatic
Voltage:
Customized
Power:
1500 W
Weight:
1000 Kg
Dimensions:
1610*1250*2500 Mm
Capacity:
2-4T/H
Filtration Area:
12m2
Material:
Carbon Steel, Stainless Steel
Design Temperature:
100-150 ℃
Design Pressure:
0.6Mpa
Inlet Size:
DN50
Outlet Size:
DN50
Filter Leaves:
11
Leaf Material:
316L
Butterfly Valve:
DN 400
Basic Properties
Place of Origin:
Jiangsu, China
Brand Name:
Juneng
Trading Properties
Minimum Order Quantity:
1 set
Price:
$11,000-11,199 / set
Product Description
New Oil Bleaching Pressure Leaf Filter Press Machine
Product Specifications
| Attribute | Value |
|---|---|
| Condition | New |
| Automatic Grade | Semi-automatic |
| Voltage | Customized |
| Power | 1500W |
| Weight | 1000 kg |
| Dimensions (L×W×H) | 1610×1250×2500 mm |
| Warranty | 1 Year |
| Function | Oil Filter |
| Structure | Leaf Filter |
| Capacity | 2-4T/H |
| Filtration Area | 12m² |
| Material | Carbon steel, Stainless steel |
| Color | Green or blue |
| Design Temperature | 100-150℃ |
| Design Pressure | 0.6Mpa |
| Inlet Size | DN50 |
| Outlet Size | DN50 |
| Applicable Industries | Manufacturing Plant, Food & Beverage Factory |
| Core Components | PLC, motor |
Product Description
The NYB high efficiency plate hermetic filter is a high-performance, energy-saving filtration system designed for hermetic operation. This advanced equipment finds applications across multiple industries including chemical processing, petroleum, painting, food production, and pharmaceuticals.
Product Application
The filter consists of several key components: shell, filtration plate, cover, and automatic dump device. The filtration plate is constructed with multiple layers of stainless steel filtration materials, mounted on a central liquid collection pipe for easy disassembly and cleaning.
Technical Specifications
| Model | Filtration Area (m²) | Filter Cake Volume (L) | Treatment Capacity | Work Pressure (Mpa) | Work Temperature (℃) | Machine Volume (L) |
|---|---|---|---|---|---|---|
| NYB-2 | 2 | 30 | 0.4-0.6 | 0.1-0.4 | ≤150 | 120 |
| NYB-4 | 4 | 60 | 0.5-1.2 | 0.1-0.4 | ≤150 | 250 |
| NYB-7 | 7 | 105 | 1-1.8 | 0.1-0.4 | ≤150 | 420 |
| NYB-10 | 10 | 150 | 1.6-3 | 0.5 | ≤150 | 800 |
| NYB-12 | 12 | 240 | 2-4 | 0.5 | ≤150 | 1000 |
Main Features
- Eliminates need for cloth and filter paper, significantly reducing filtration costs
- Fully enclosed operation prevents material loss and ensures environmental protection
- Vibration residue discharge system reduces labor intensity and enables continuous operation
- Pneumatic valve residue discharge minimizes worker effort
- Capable of activated carbon (carclazyte) filtering or bleaching filtering, replacing traditional plate and frame filters

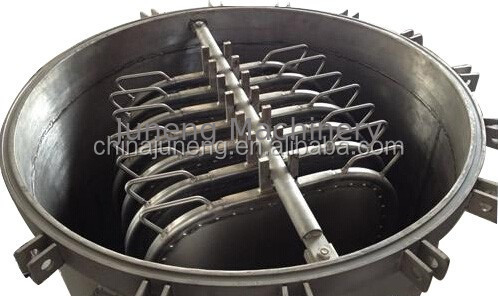

Filter Leaf Specifications (NYB-12 Model)
Configuration: 11 filter leaves provide 12m² filtration area
Construction: Heavy box channel 1.8mm material 316L
Features: Topside reinforcement with vibrator fork (SS 316), bottom outlet nozzle with Viton rubber O-ring seal
Construction: Heavy box channel 1.8mm material 316L
Features: Topside reinforcement with vibrator fork (SS 316), bottom outlet nozzle with Viton rubber O-ring seal
Butterfly Valve Specifications (NYB-12 Model)
Type: DN 400 wafer type for dry cake discharge
Materials: NH-S seat (up to 150°C), SS 316 construction
Actuation: Pneumatic actuator (double acting, 5.5 Bar air supply)
Materials: NH-S seat (up to 150°C), SS 316 construction
Actuation: Pneumatic actuator (double acting, 5.5 Bar air supply)
Packaging & Delivery
| Packaging Specification | Details |
|---|---|
| Size | 123 (L) × 456 (W) × 789 (D) cm |
| Weight | 1.2 Tons |
| Packaging Method | Standard wooden box packaging. European exports include fumigation. Alternative packaging available for special requirements. |
Our Services
Pre-Sales Support: Technical consultation, sample testing, factory visits
After-Sales Support: Installation training, operation training, overseas engineer support
After-Sales Support: Installation training, operation training, overseas engineer support
Certifications
About Our Company
Juneng Machinery (China) Co., Ltd., established in 2006, specializes in the research, development, and production of filtration and separation equipment. With four factories located in Nanjing and Yixing City, we maintain strict quality control and offer comprehensive customer support.
Our certifications include CE, ASME U, and ISO 9001. Our products serve domestic markets and export to numerous countries including USA, Germany, Korea, and Japan. We welcome OEM and ODM orders, with engineering support available for custom applications.
