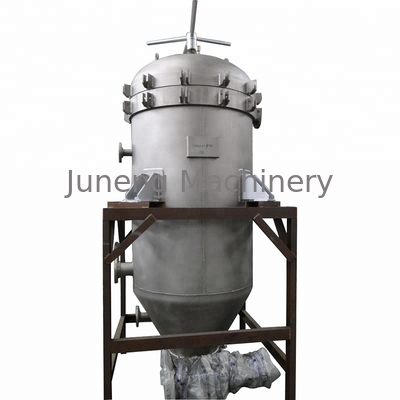

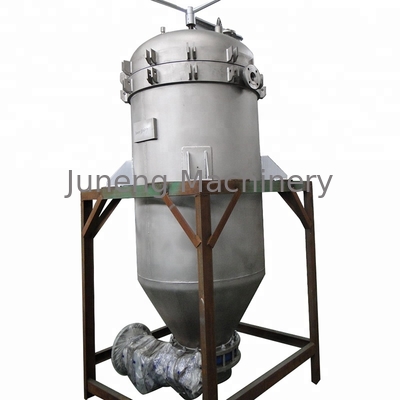

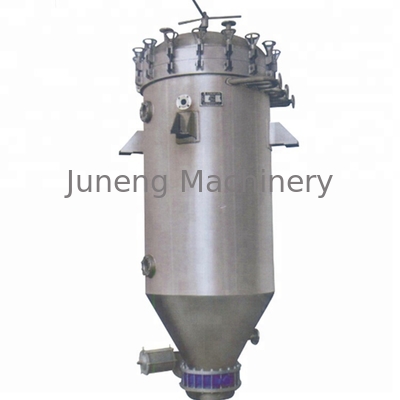

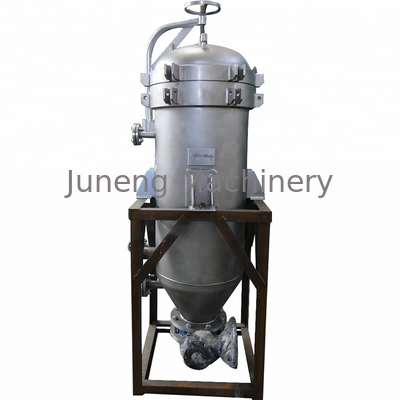

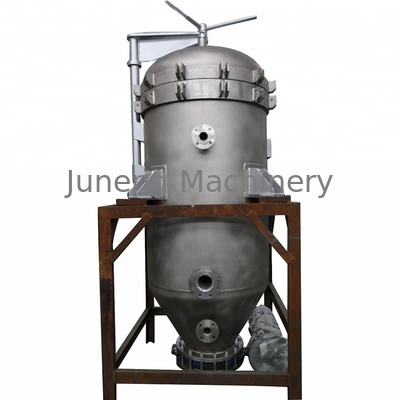

New Vertical Pressure Leaf Filter 500-100000LPH Capacity Carbon Steel

  • New Vertical Pressure Leaf Filter 500-100000LPH Capacity Carbon Steel
  • New Vertical Pressure Leaf Filter 500-100000LPH Capacity Carbon Steel
  • New Vertical Pressure Leaf Filter 500-100000LPH Capacity Carbon Steel
  • New Vertical Pressure Leaf Filter 500-100000LPH Capacity Carbon Steel
  • New Vertical Pressure Leaf Filter 500-100000LPH Capacity Carbon Steel
  • New Vertical Pressure Leaf Filter 500-100000LPH Capacity Carbon Steel
Place of Origin Jiangsu, China
Brand Name Juneng
Minimum Order Quantity 1 set
Price $7,500-7,900 / set

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Capacity 500-100000LPH Filtration Area 2m2-100m2
Material Carbon Steel Design Temperature 100-150 C
Design Pressure 0.6Mpa Inlet Size DN50
Outlet Size DN50 Filter Cake Volume 30-1600L
Work Pressure 0.1-0.4Mpa Work Temperature ≤150℃
Machine Volume 120-7200L Structure Leaf Filter
Function Oil Filter Packaging Size 123 (L) * 456 (W) * 789 (D)
Weight 1.2 T
Highlight

vertical pressure leaf filter carbon steel

,

pressure leaf filter 500-100000LPH

,

vertical leaf filter with warranty
Leave a Message
Product Description
Amafilter Industrial Vertical Pressure Leaf Filter
Product Specifications
Attribute Value
Condition New
Warranty 1 Year
Function Oil Filter
Structure Leaf Filter
Capacity 500-100000LPH
Filtration area 2m²-100m²
Material Carbon steel
Color Green or blue
Design Temperature 100-150°C
Design Pressure 0.6Mpa
Inlet size DN50
Outlet size DN50
After Warranty Service Video technical support, Online support, Spare parts, Field maintenance and repair service
After-sales Service Provided Field maintenance and repair service
Applicable Industries Food & Beverage Factory, Resin Industry
Video outgoing-inspection Provided
Machinery Test Report Provided
Core Components Pressure vessel
Product Description
Product Application

The NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, so it can be dismantled for cleaning very conveniently.

New Vertical Pressure Leaf Filter 500-100000LPH Capacity Carbon Steel 0
Technical Specifications
Model Filtration area (m²) Filter cake volume (L) Treatment Capacity Work Pressure (Mpa) Work temperature (°C) Machine volume (L)
NYB-2 2 30 0.4-0.6 0.1-0.4 ≤150 120
NYB-4 4 60 0.5-1.2 0.1-0.4 ≤150 250
NYB-7 7 105 1-1.8 0.1-0.4 ≤150 420
NYB-10 10 150 1.6-3 0.1-0.4 ≤150 800
NYB-12 12 240 2-4 0.1-0.4 ≤150 1000
NYB-15 15 300 3-5 0.1-0.4 ≤150 1300
NYB-20 20 400 4-6 0.1-0.4 ≤150 1680
NYB-25 25 500 5-7 0.1-0.4 ≤150 1900
NYB-30 30 600 6-8 0.1-0.4 ≤150 2300
NYB-36 36 720 7-9 0.1-0.4 ≤150 2650
NYB-40 40 800 8-11 0.1-0.4 ≤150 2900
NYB-45 45 900 9-13 0.1-0.4 ≤150 3200
NYB-52 52 1040 10-15 0.1-0.4 ≤150 3800
NYB-60 60 1200 11-17 0.1-0.4 ≤150 4500
NYB-70 70 1400 12-19 0.1-0.4 ≤150 5800
NYB-80 80 1600 13-21 0.1-0.4 ≤150 7200
New Vertical Pressure Leaf Filter 500-100000LPH Capacity Carbon Steel 1 New Vertical Pressure Leaf Filter 500-100000LPH Capacity Carbon Steel 2 New Vertical Pressure Leaf Filter 500-100000LPH Capacity Carbon Steel 3
Main Features
  • With no cloth and filter paper, it greatly reduces filtration costs
  • The fully closed operation is environmentally friendly without material loss
  • Vibration residue falling greatly reduces labor intensity and realizes continuous operation
  • Residue discharging through the pneumatic valve greatly reduces labor intensity of workers
  • The residues in the liquids are subject to activated carbon (carclazyte) filtering or bleaching filtering. It can completely replace the plate and frame filter and is a revolutionary device in the filter industry
Certifications
New Vertical Pressure Leaf Filter 500-100000LPH Capacity Carbon Steel 4
Our Service
New Vertical Pressure Leaf Filter 500-100000LPH Capacity Carbon Steel 5 New Vertical Pressure Leaf Filter 500-100000LPH Capacity Carbon Steel 6
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • View our Factory
After-Sales Service
  • Training how to install the machine, training how to use the machine
  • Engineers available to service machinery overseas
Packaging & Delivery
New Vertical Pressure Leaf Filter 500-100000LPH Capacity Carbon Steel 7
Size 123 (L) * 456 (W) * 789 (D)
Weight 1.2 T
Packaging Details The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated. If container is too tigher,we will use pe film for packing or pack it according to customers special request.
