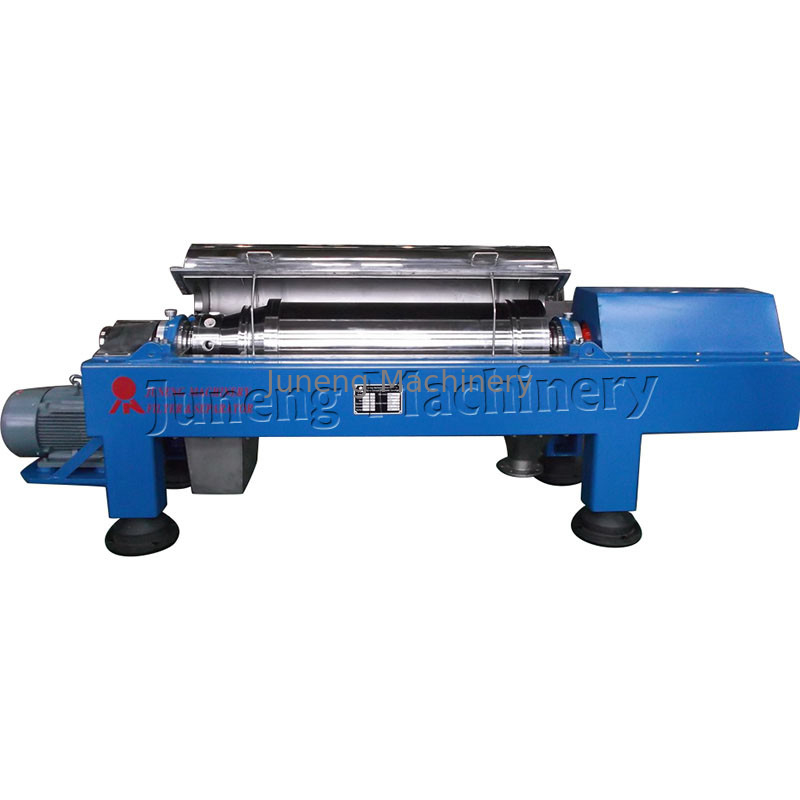

Oil Field Water Treatment Sludge Decanter Centrifuge Machine Continuous Discharge

Place of Origin JIANGSU YIXING
Brand Name Juneng
Certification CE , ISO9001&ISO14001
Model Number LW
Minimum Order Quantity 1 set
Price USD15000~100000/set
Packaging Details seaworthy packing
Delivery Time 30~50 days
Payment Terms L/C, T/T
Supply Ability 50 sets /months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Alias Centrifuge Control Automatic Control
After-sales Service Provided Overseas Service Center Available Application Oil, Water Treatment
High Light

sludge decanter centrifuge

,

dewatering centrifuge operation

,

sludge decanter centrifuge machine

Leave a Message
Product Description

Blue Color Oil Field Watertreatment Sludge Dewatering Decanter Centrifuge Machine

Detailed Product Description
Diameter 250mm-720mm  Voltage :  220V, 380V,440V,460V
Speed Inverter Control  Electrical Components:  World Famous Brand
Operation Continuous Separation :  Three phase
Bearing SKF Moc :  SS304, SS316L, SS2205
Control PLC Motor :  2





Product description:


Decanter centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference.

The centrifuges which made by out factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%.





The product can be classify into two type LW-counter-current and parallel-current base on its structure feature. According to feed feature, product can be divide into LW two-phase separator, LWS three-phase separator.

It is suitable for separating different feed under different process condition, and widely use in pharmaceutical, food, chemical, light industry, environmental protection industry etc…


Model Drum diameter
mm
Draw Ratio
L/D
Speed of drum
r/min
Factor of
separation G
Spiral difference
rotate speed

r/min
Inlet
capacity(m3/h)
Main/assist
motor (KW)
LW250W 250 3.73 4200 2467 2~31 1-7 11/4
LW350W 350 4.4 3600 2540 5~25 5~18 22/5.5
LW450W 450 4.4 3200 2580 5~25 5~28 30/11
LW520W 520 4.1 2850 2365 2~26 10~35 45/11
LW550W 550 4.1 2650 2370 2~26 10~45 55/11





Working principle

Oil Field Water Treatment Sludge Decanter Centrifuge Machine Continuous Discharge 0





Features

  • All parts coming into contact with the product are made of stainless steel.
  • 3-phase AC motor for controlled torque starting via frequency converter
  • Approximately 80 to 90 % of the oil is recovered.
  • Low personnel costs due to continuous and automatic operation.
  • Highest g-force for higher solids output
  • Adjustable bowl speed via VFD
  • Automatic adjustment of differential speed via VFD
  • Two motor drive
  • Belts for both primary motor and secondary motor









Oil Field Water Treatment Sludge Decanter Centrifuge Machine Continuous Discharge 1



Application:


Decanter centrifuge is most often used for clarification of liquid containing high concentrations of solid, removing solids from liquid. It is usually used in waste water and PVC sludge industry. And also can be used in sunflower oil, palm oil and tea industry.



Oil Field Water Treatment Sludge Decanter Centrifuge Machine Continuous Discharge 2
