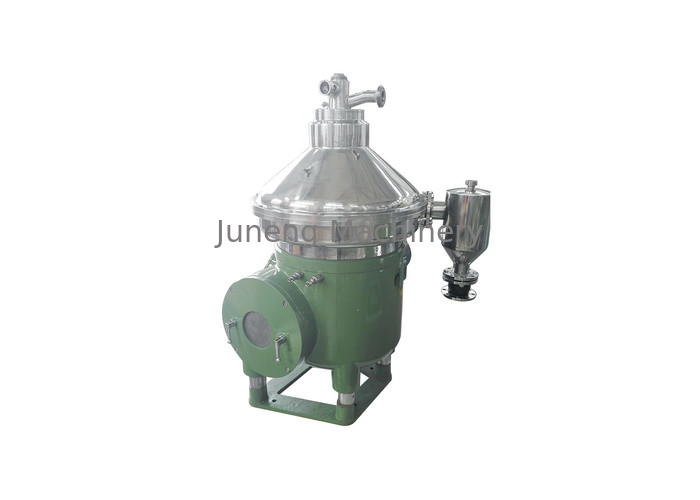

Disk Centrifuge Oil Water Separator With Inlet And Outlet Mechanism

Place of Origin China(Yixing, Jiangsu)
Brand Name Juneng Machinery
Model Number KYDR204
Minimum Order Quantity One set
Packaging Details Standard Wooden Case
Delivery Time 60 days
Payment Terms TT
Supply Ability 40 set / months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Centrifuge Oil Water Separator Type Disk
Mechanism Nlet And Outlet Mechanism Advantage Powerful
High Light

Edible oil separator

,

Fish oil separator

Leave a Message
Product Description

Disk Centrifuge Oil Water Separator With Inlet And Outlet Mechanism



Centrifuge Oil Water Separator Application:



The marine separator is mainly used for cleaning up the moisture and mechanical impurity in the fuel ( Light diesel oil, heavy diesel oil, fuel oil) and lubricating oil of ships and diesel engine



Centrifuge Oil Water Separator competitive advantage:



1, There are stationary centripetal pumps for heavy phase and light phase output. Separated heavy phase and light phase are outputted respectively by the large and small centripetal pumps which on the top of the drum respectively. .



Centrifuge Oil Water Separator description:



KYDR204DD-23 series disk separators are mainly made up of inlet and outlet mechanism, drum , machine cover, vertical shaft, horizontal shaft, machine base, gear pump, etc.

The unfiltered materials (mixed liquid) are transmitted to the heart parts of this machine ( the inside of the drum). Under the actions of strong centrifugal force, the materials will pass through the intervals of a group of disk piece bundles. And then, the neutral hole of the disk piece being the interface, the liquid with higher density  (heavy phase) will move outward the neutral hole along the disk piece, through the annular channels of drum outer circle, flowing to the heavy phase outlet. The heavy residues will be accumulated in the sediment area, waiting for discharge when the machine is shut down. The liquid with lower density ( light phase) will move upward along the disk piece wall and gather in the small centripetal pump, outputted by the small centripetal pump.




2, This series of separator outfits various specific gravity rings with different diameter, which can be used according to the density and volume of the materials.



Centrifuge Oil Water Separator Specifications:



Model

Rated Treatment
 capacity (L/h)

Inlet pressure

(Mpa)

Outlet
pressure (Mpa)

Suck Journey
of Sump Pump

Outlet pressure
of sump pump

Motor

(KW)

KYDR204DD-23

1500

≤0.05

≥0.2

≥4

≥0.2

4





Company Service:



We sincerely offer various fittings for import and domestic separator users. Our professional personnel will give you help and consultation at any time.



Repair and Maintenance:



We sincerely offer various fittings for import and domestic separator users. Our professional personnel will give you help and consultation at any time.



Train:



Juneng Company provides parts and repair, maintenance as well as techical advice for the demestic and import separator in long time. We guarantee the quality of every maintenance and service.
