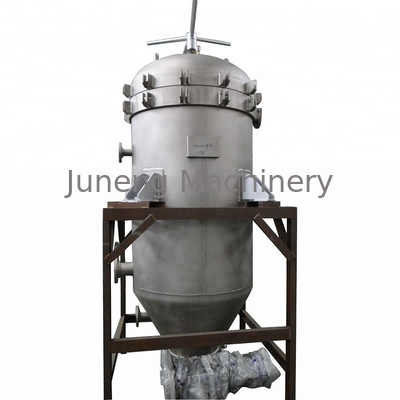

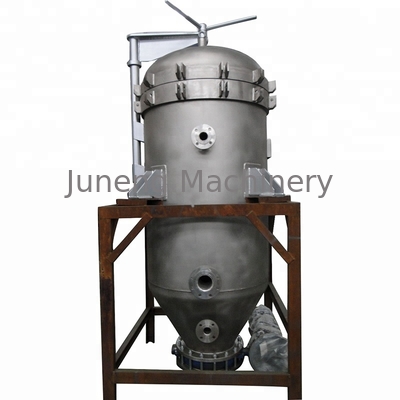

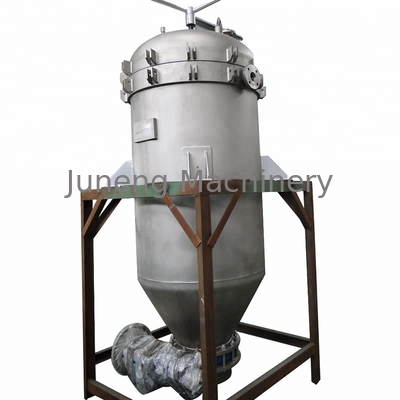

NYB Vertical Stainless Steel Plate Filter 12m2 Filtration Area
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | Juneng |
| Minimum Order Quantity | 1 set |
| Price | $7,106-11,199 / set |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity | 2-4T/H | Filtration Area | 12m2 |
|---|---|---|---|
| Material | Carbon Steel, Stainless Steel | Design Temperature | 100-150 ℃ |
| Design Pressure | 0.6Mpa | Inlet Size | DN50 |
| Overflow Port Size | DN40 | Filter Cake Volume | 240L |
| Work Pressure | 0.5Mpa | Work Temperature | ≤150℃ |
| Machine Volume | 1000L | Leaf Material | 316L |
| Leaf Thickness | 1.8 Mm | Butterfly Valve Size | DN400 |
| Pneumatic Actuator Pressure | 5.5 Bar | ||
| Highlight | stainless steel vertical plate filter,12m2 vertical pressure leaf filter,vertical stainless steel filter with warranty |
||
Product Description
Jiangsu Juneng NYB Vertical Stainless Steel Plate Filter
Product Specifications
| Attribute | Value |
|---|---|
| Warranty | 1 Year |
| After-sales Service | Field maintenance and repair service |
| Function | Oil Filter |
| Structure | Leaf Filter |
| Capacity | 2-4T/H |
| Filtration area | 12m² |
| Material | Carbon steel, Stainless steel |
| Color | Green or blue |
| Design Temperature | 100-150 ℃ |
| Design Pressure | 0.6Mpa |
| Inlet size | DN50 |
| Overflow port size | DN40 |
Product Overview
The NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

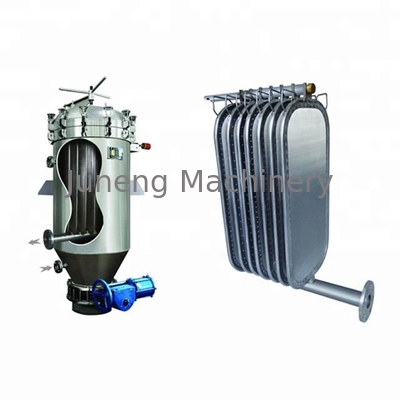

The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, allowing for convenient dismantling and cleaning.
Technical Specifications
| Model | Filtration area (㎡) | Filter cake volume (L) | Treatment Capacity | Work Pressure (Mpa) | Work temperature (℃) | Machine volume (L) |
|---|---|---|---|---|---|---|
| NYB-2 | 2 | 30 | 0.4-0.6 | 0.1-0.4 | ≤150 | 120 |
| NYB-4 | 4 | 60 | 0.5-1.2 | 0.1-0.4 | ≤150 | 250 |
| NYB-7 | 7 | 105 | 1-1.8 | 0.1-0.4 | ≤150 | 420 |
| NYB-10 | 10 | 150 | 1.6-3 | 0.1-0.4 | ≤150 | 800 |
| NYB-12 | 12 | 240 | 2-4 | 0.1-0.4 | ≤150 | 1000 |
| NYB-15 | 15 | 300 | 3-5 | 0.1-0.4 | ≤150 | 1300 |
| NYB-20 | 20 | 400 | 4-6 | 0.1-0.4 | ≤150 | 1680 |
Key Features
- No cloth or filter paper required, significantly reducing filtration costs
- Fully closed operation is environmentally friendly with no material loss
- Vibration residue falling reduces labor intensity and enables continuous operation
- Residue discharging through pneumatic valve minimizes worker labor
- Can completely replace plate and frame filters with activated carbon filtering capability
Filter Leaf Specifications (NYB-12 Example)
- 11 filter leaves provide 12 sqm filtration area
- Leaves made with heavy box channel 1.8 mm material 316L
- Topside of leaf with reinforcement and one vibrator fork per leaf (SS 316 material)
- Leaf bottom with outlet nozzle featuring "O"ring seal (SS 316 nozzle with Viton rubber "O"ring)
Butterfly Valve (NYB-12 Example)
- DN 400 butterfly valve WAFER TYPE for dry cake discharge
- High quality butterfly valve with NH-S seat material (up to 150°C)
- Includes pneumatic actuator (double acting type) with 5.5 Bar air supply
Packaging & Delivery
| Size | 123 (L) * 456 (W) * 789 (D) |
|---|---|
| Weight | 1.2 T |
| Packaging Details | Standard wooden box packaging. For European exports, wooden boxes are fumigated. Alternative packaging available for tight containers or special requests. |
Certifications
Our Services
Pre-Sales Service
- Inquiry and consulting support
- Sample testing support
- Factory visit arrangements
After-Sales Service
- Installation and operation training
- Overseas engineer support (customer responsible for abroad costs)
- Prompt response within 2 hours for reported issues
About Juneng Group
Juneng Machinery (China)Co., Ltd., established in 2006, is a professional manufacturer of filters, separators, decanter centrifuges and pumps with four factories located in Nanjing and Yixing City.
We are committed to strict quality control and customer service, holding CE certificates, ASME U certificate and ISO 9001 certification. Our products are exported worldwide including USA, Germany, Korea, Japan, and many other countries.
We welcome OEM and ODM orders, with customer service available to discuss your specific requirements.
